ESPADA: Execution Speedup via Spatially Aware Demonstration Downsampling

Context- and Spatial-Aware Segmentation via VLM → LLM

Object tracking with interactive keyframe seeding

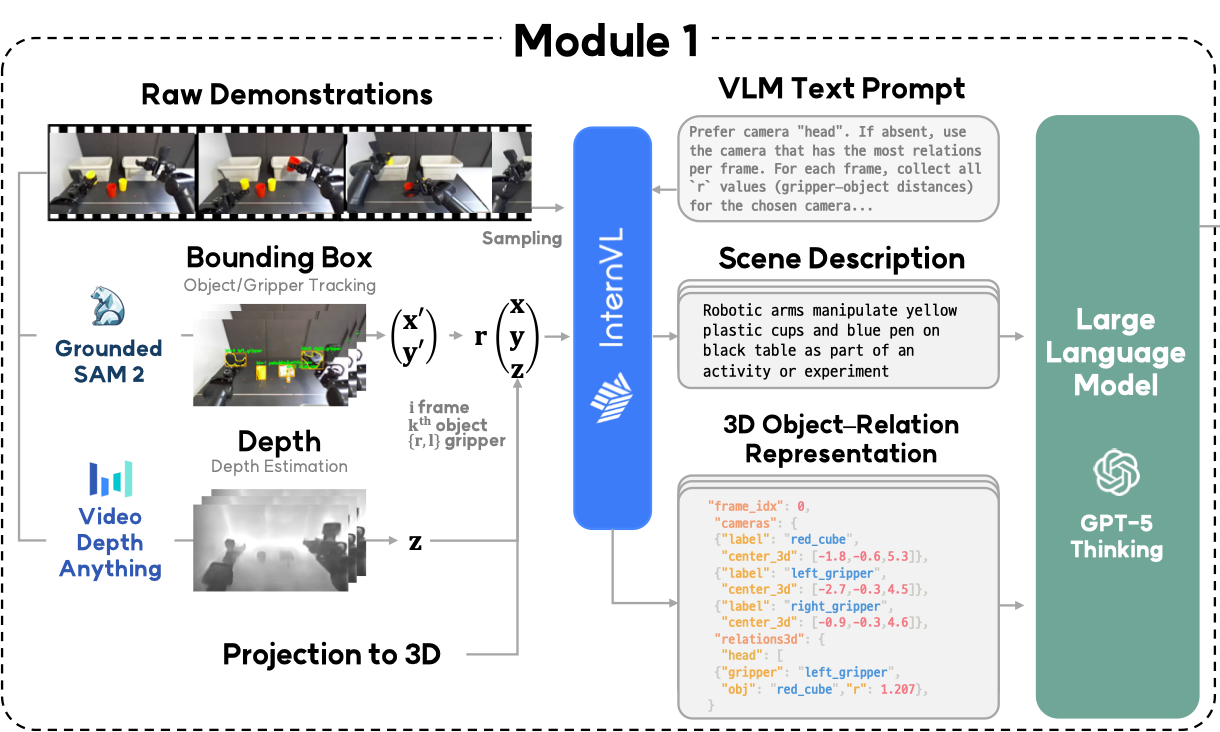

First, we obtain open-vocabulary tracks from demonstration videos using Grounded-SAM2. In addition to text prompts, users can provide sparse keyframe annotations (boxes or point-groups) via a lightweight UI. We maintain a label↔id mapping across keyframes and perform IoU-based association to propagate user labels to SAM2 track IDs. During propagation, we use a keep-alive strategy (bbox carry-over for short outages) and periodic re-detection with Grounding DINO, reconnecting lost tracks via a score that mixes IoU and color-histogram similarity. This reduces fragmentations and preserves object identity across occlusions.

To bootstrap object grounding, we first sample ~10 representative frames from episode 0 and feed them into InternVL 3.5 to obtain a compact natural-language description of the overall task. For the same frames, we apply Grounding DINO v2 to detect and segment task-relevant entities such as left_gripper, right_gripper, and target objects (e.g., yellow_cup). If bounding box predictions fail for some frames, we allow lightweight manual correction (bounding box only) through the UI. The corrected boxes serve as anchors for SAM2, which then propagates object masks and bounding boxes consistently across the entire episode. This hybrid strategy (automatic detection + sparse manual fallback + SAM2 propagation) ensures that every frame obtains reliable per-object segmentation, even under occlusion or detector failure.

Depth estimation and 3D back-projection

We estimate per-frame depths with VDA/DA2 (metric or relative; optionally scaled by a factor \( z_{\mathrm{scale}} \)). As we obtained the pixel coordinates \( (u, v) \) of each object of interest in the previous step, given the corresponding depth \( Z \), we can recover its 3D position in the camera coordinate frame via standard back-projection: \[ \mathbf{p} = Z K^{-1}[u, v, 1]^{\top} \] This yields a center_3d for each tracked mask. We then compute frame-wise gripper–object distances, \[ r_t(g,o)=\|\mathbf{p}^{(g)}_{t}-\mathbf{p}^{(o)}_{t}\|_2 \] for \( g\in\{\text{gripper\_left,gripper\_right}\} \) and task-relevant objects \( o \). For multi-view sequences, we build per-camera relations_3d from the set of \( r_t(g,o) \) values, and prefer the head camera if present; otherwise we select the camera with the most valid relations at a frame. We rely on temporal trends in \( r_t \) rather than absolute scale, avoiding the need for extrinsics.

LLM-Based Segmentation Conditioned on VLM Summaries

From the sampled frames (typically 4–8) and their structured 3D cues, we query a VLM (InternVL) for a strict-JSON, chronologically ordered episode summary. We then attach this VLM-produced summary as a task descriptor to the LLM prompt. Using this VLM-produced descriptor, we perform LLM-based segmentation as follows. The LLM receives: (i) a JSONL stream with frame-wise center_3d and relations_3d for the full episode, and (ii) the VLM summary descriptor. It outputs non-overlapping, inclusive index ranges labeled precision or casual. We encode policy hints to favor robust, human-like chunks:

• Intent criteria. Sustained near-contact plateaus and low-variance micro-adjustments \(\Rightarrow\) precision; long approach/retreat or persistent far separation \(\Rightarrow\) casual.
• Stability. Minimum segment length \( L_{\min}=8 \); merge same-label segments across gaps shorter than \( G_{\min}=5 \); require \( \ge 3 \) consecutive frames to switch labels (hysteresis); ignore micro-oscillations shorter than \( L_{\mathrm{micro}}=6 \).
• Parsimony. Prefer 3–4 segments unless strong evidence suggests otherwise.

Because the model may leave small gaps when confidence is low, we run a deterministic coverage completion pass: fill gaps by extending the nearest high-confidence neighbor that best matches the local \( r_t \) trend, then re-apply the stability rules. The final set provides full frame coverage with per-segment confidence.

Finally, to respect LLM context limits for long demonstrations, we apply token-budgeted sampling and JSON slimming. Demonstrations often have thousands of frames, easily exceeding LLM context limits. We therefore compute the maximum feasible sample count \( K \) by binary search over the measured per-frame JSON length and select \( K \) evenly spaced indices, ensuring trajectory-wide coverage under a fixed character budget. We further compact prompts by float rounding and whitespace-free JSON serialization, reducing token overhead by ~30–40% without changing semantics.

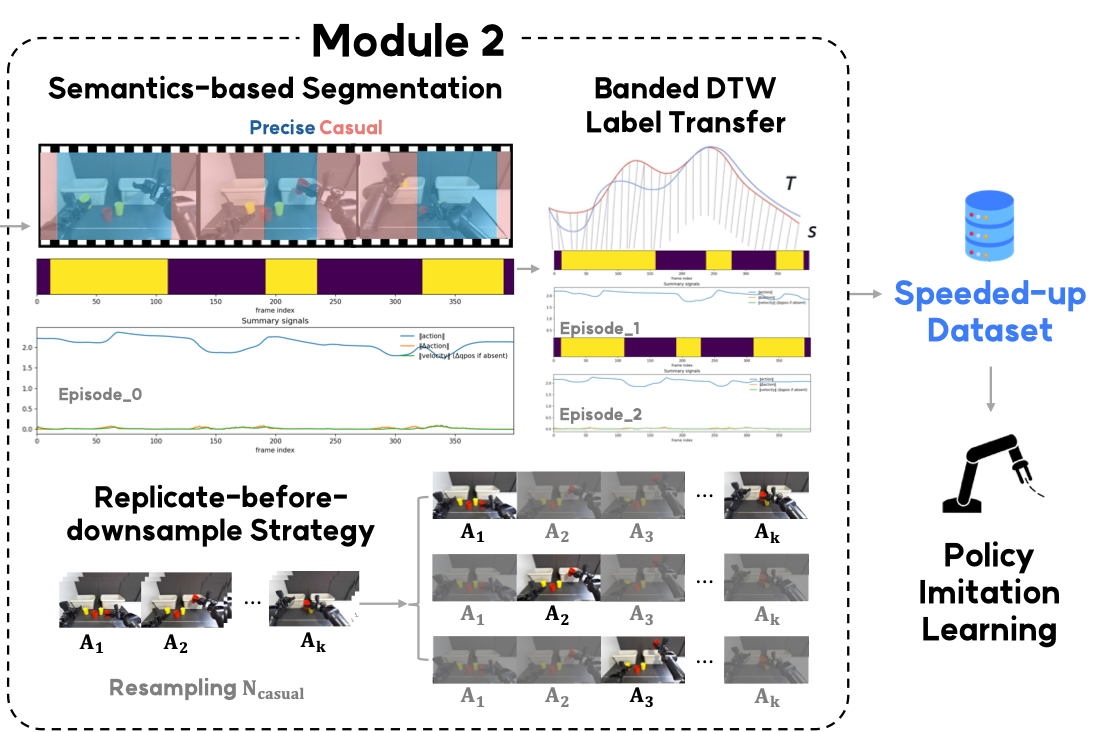

Banded DTW Label Transfer from Episode-0

For datasets where only episode 0 is labeled, we propagate its segment labels (precision / casual) to the remaining episodes via banded Dynamic Time Warping (DTW).

Proprioceptive DTW Alignment

From each episode we build a per-frame feature vector using only proprioception and actions. Concretely, we concatenate z-scored features to form \( \phi_t \in \mathbb{R}^{D} \): \[ \phi_t = [ a_t, \Delta a_t, v_t, \Delta v_t, \|a_t\|, \|v_t\|, \|\Delta a_t\|, \|\Delta q_t\|, \|\Delta v_t\|, \angle(a_t, a_t+\Delta a_t), \angle(v_t, v_t+\Delta v_t) ] \] where \( a_t \) are actions, \( q_t \) are joint positions, \( v_t \) are joint velocities if available (otherwise we use \( \Delta q_t \) as a proxy), and \( \angle(\cdot,\cdot) \) is the angle between successive vectors.

Given episode 0 features \( X_0 \) and target features \( X_k \) for episode \( k \), we run DTW with a Sakoe–Chiba band of half-width \( b \). This yields an alignment path which we convert into a monotone index map.

Segment-wise Label Transfer and Refinement

For each episode-0 labeled segment, we obtain the target span and snap both ends within a local window of \( \pm W \) frames (default \( W=12 \)) by minimizing the \( \ell_2 \) distance between short mean-pooled feature summaries. Mapped segments are sorted and trimmed to remove overlaps while preserving order. The banded DTW runtime is near-linear in sequence length, allowing fast transfers on CPU.

Segment-wise Downsampling and Dataset Compilation

Given the final segmentation, we construct an acceleration-aware dataset by applying replicate-before-downsample with a larger downsampling factor for casual spans and a smaller downsampling factor for precision spans.

Replicate-before-downsample

To maintain full state coverage under temporal compression, we adopt a replicate-before-downsample strategy. For a segment \( [s,e] \) and downsampling factor \( N \), we create \( N \) replicas with offsets \( m \in \{0,\dots,N-1\} \) and retain frames matching the offset. Taking the union across \( m \) recovers the original support, thereby preserving full state diversity in the downsampled dataset.

Geometric Consistency for Chunked Policies

Temporal acceleration alters the per-chunk spatial displacement, undermining the horizon \( K \) that the policy has been optimized to perform best at. To maintain geometric fidelity under accelerated demonstrations, we adopt the geometry-consistent downsampling scheme and rescale the effective chunk horizon \( K' \) so that its spatial displacement remains consistent with the original: \[ \sum_{k=0}^{K'-1}\|\Delta\mathbf{x}_{t+k}\| \approx \sum_{k=0}^{K-1}\|\Delta\mathbf{x}_{t+k}\| \] where \( \mathbf{x}_t \) denotes the end-effector pose. In practice, \( K' \approx \frac{1}{2} K \) performs well.

Gripper Event Precision Forcing

We apply gripper event precision forcing method to safeguard contact-rich phases from being over-accelerated. For each trajectory, we detect gripper movements by checking the change in the normalized gripper command \( g_t \) and mark a frame as a candidate event if \( |g_{t+4} - g_t| \ge 0.03 \). All marked frames are then clustered along the temporal axis using DBSCAN. For each cluster, we take the minimum and maximum frame indices, pad them by two frames on both sides, and override the corresponding window to be precision on top of the base LLM segmentation results.
